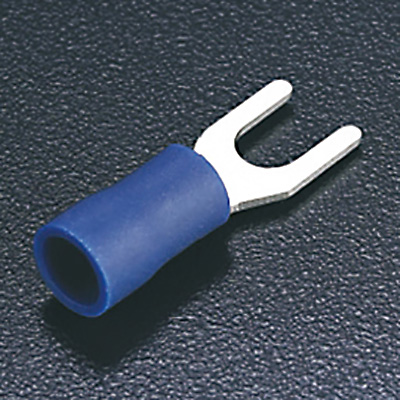

Zapata tipo
espada/horquilla
Cobre estañado con aislante de vinil
| Código | mm² | AWG | Dimensiones | Color | Empaque | ||||
|---|---|---|---|---|---|---|---|---|---|
| d2 | W | L | E | d1 | |||||
| SV1-3.2 | 0.5-1.5 | 22-16 | 3.2 (1/8") | 5.7 | 21.0 | 10 | 1.7 |  |
100 pz |
| SV1-3.7S | 0.5-1.5 | 22-16 | 3.7 (9/64") | 5.7 | 21.0 | 10 | 1.7 | |
100 pz |
| SV1-4S | 0.5-1.5 | 22-16 | 4.3 (5/32") | 6.4 | 21.0 | 10 | 1.7 | |
100 pz |
| SV1-5S | 0.5-1.5 | 22-16 | 5.3 (3/16") | 8.1 | 21.0 | 10 | 1.7 | |
100 pz |
| SV1-6S | 0.5-1.5 | 22-16 | 6.4 (1/4") | 9.5 | 27.0 | 10 | 1.7 | |
100 pz |
| SV2-3.2 | 1.5-2.5 | 16-14 | 3.2 (1/8") | 5.7 | 21.0 | 10 | 2.3 |  |
100 pz |
| SV2-3.7S | 1.5-2.5 | 16-14 | 3.7 (9/64") | 5.7 | 21.0 | 10 | 2.3 | |
100 pz |
| SV2-4S | 1.5-2.5 | 16-14 | 4.3 (5/32") | 6.4 | 21.0 | 10 | 2.3 | |
100 pz |
| SV2-5S | 1.5-2.5 | 16-14 | 5.3 (3/16") | 7.9 | 21.0 | 10 | 2.3 | |
100 pz |
| SV2-6S | 1.5-2.5 | 16-14 | 6.4 (1/4") | 9.3 | 27.0 | 10 | 2.3 | |
100 pz |
| SV5-4L | 4-6 | 12-10 | 4.3 (5/32") | 8.3 | 25.5 | 13 | 3.4 |  |
100 pz |
| SV5-5 | 4-6 | 12-10 | 5.3 (3/16") | 9.0 | 25.5 | 13 | 3.4 | |
100 pz |
| SV5-6S | 4-6 | 12-10 | 6.4 (1/4") | 9.0 | 31.5 | 13 | 3.4 | |
100 pz |
| SV5-8 | 4-6 | 12-10 | 8.4 (5/16") | 14.0 | 30.5 | 13 | 3.4 | |
100 pz |
