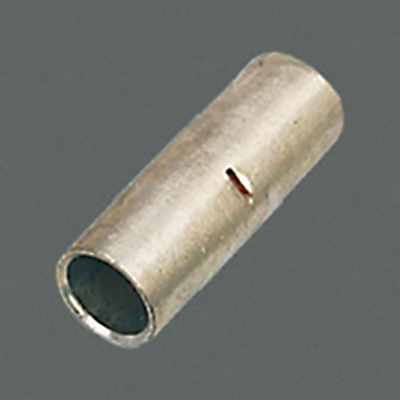

Conector a tope sin aislar
Material: Cobre estañado
| Código | mm² | AWG | Dimensiones | ||
|---|---|---|---|---|---|
| L | d | ||||
| GTY6 | 6 | 10 | 25 | 3.7 | |
| GTY10 | 10 | 8 | 30 | 4.5 | |
| GTY16 | 16 | 6 | 35 | 5.7 | |
| GTY25 | 4 | 40 | 7.2 | ||
| GTY35 | 35 | 2 | 45 | 8.5 | |
| GTY50 | 50 | 1/0 | 50 | 9.8 | |
| GTY70 | 70 | 2/0 | 55 | 11.5 | |
| GTY95 | 95 | 3/0 | 60 | 13.7 | |
| GTY120 | 120 | 4/0 | 65 | 15.0 | |
| GTY150 | 150 | 250 MCM | 70 | 16.7 | |
| GTY185 | 185 | 350 MCM | 75 | 19.2 | |
| GTY240 | 240 | 450 MCM | 80 | 21.0 | |
| GTY300 | 300 | 500 MCM | 85 | 24.0 | |
