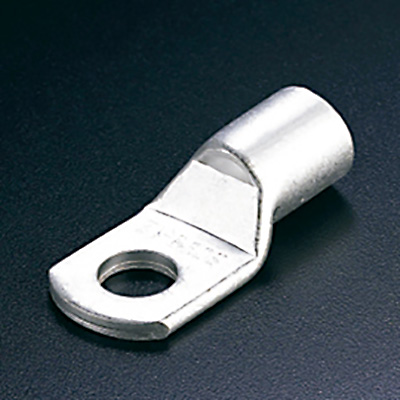

SC-DTGA terminal desnuda de cobre estañado
Cobre estañado

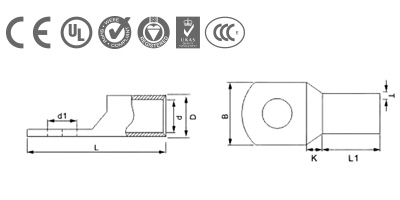

| Código | Pulg | mm² | AWG | Dimensiones | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| L | d | L | d | L | d | L | d | ||||
| SC6-6 | 1/4" | 6 | 10 | 5.5 | 4.1 | 9.0 | 1.2 | 9.0 | 6.5 | 0.7 | 23.0 |
| SC6-8 | 5/16" | 6 | 10 | 5.5 | 4.1 | 9.0 | 1.2 | 12.0 | 8.5 | 0.7 | 23.0 |
| SC10-6 | 1/4" | 10 | 8 | 6.7 | 5.1 | 9.5 | 1.5 | 10.3 | 6.5 | 0.8 | 25.0 |
| SC10-8 | 5/16" | 10 | 8 | 6.7 | 5.1 | 9.5 | 1.5 | 12.3 | 8.5 | 0.8 | 25.0 |
| SC10-10 | 3/8" | 10 | 8 | 6.7 | 5.1 | 9.5 | 1.5 | 14.0 | 10.5 | 0.8 | 28.3 |
| SC16-6 | 1/4" | 16 | 6 | 7.5 | 5.8 | 13.0 | 2.0 | 11.5 | 6.5 | 0.85 | 31.0 |
| SC16-8 | 5/16" | 16 | 6 | 7.5 | 5.8 | 13.0 | 2.0 | 11.5 | 8.5 | 0.85 | 31.0 |
| SC16-10 | 3/8" | 16 | 6 | 7.5 | 5.8 | 13.0 | 2.0 | 15.0 | 10.5 | 0.85 | 33.5 |
| SC16-12 | 1/2" | 16 | 6 | 7.5 | 5.8 | 13.0 | 2.0 | 17.0 | 12.5 | 0.85 | 37.5 |
| SC25-6 | 1/4" | 25 | 4 | 9.0 | 7.0 | 13.5 | 3.0 | 13.0 | 6.5 | 1.0 | 34.0 |
| SC25-8 | 5/16" | 25 | 4 | 9.0 | 7.0 | 13.5 | 3.0 | 13.0 | 8.5 | 1.0 | 34.0 |
| SC25-10 | 3/8" | 25 | 4 | 9.0 | 7.0 | 13.5 | 3.0 | 15.0 | 10.5 | 1.0 | 37.0 |
| SC25-12 | 1/2" | 25 | 4 | 9.0 | 7.0 | 13.5 | 3.0 | 18.0 | 13.0 | 1.0 | 39.0 |
| SC35-6 | 1/4" | 35 | 2 | 10.5 | 8.2 | 15.0 | 4.0 | 15.0 | 6.5 | 1.5 | 38.0 |
| SC35-8 | 5/16" | 35 | 2 | 10.5 | 8.2 | 15.0 | 4.0 | 15.0 | 8.5 | 1.5 | 38.0 |
| SC35-10 | 3/8" | 35 | 2 | 10.5 | 8.2 | 15.0 | 4.0 | 15.0 | 10.5 | 1.5 | 38.0 |
| SC35-12 | 1/2" | 35 | 2 | 10.5 | 8.2 | 15.0 | 4.0 | 18.0 | 13.0 | 1.5 | 38.0 |
| SC50-6 | 1/4" | 50 | 1/0 | 12.4 | 9.8 | 17.0 | 5.0 | 18.3 | 6.5 | 1.35 | 43.5 |
| SC50-8 | 5/16" | 50 | 1/0 | 12.4 | 9.8 | 17.0 | 5.0 | 18.3 | 8.5 | 1.35 | 43.5 |
| SC50-10 | 3/8" | 50 | 1/0 | 12.4 | 9.8 | 17.0 | 5.0 | 18.3 | 10.5 | 1.35 | 43.5 |
| SC50-12 | 1/2" | 50 | 1/0 | 12.4 | 9.8 | 17.0 | 5.0 | 18.3 | 13.0 | 1.35 | 43.5 |
| SC70-8 | 5/16" | 70 | 2/0 | 14.7 | 11.9 | 19.0 | 5.0 | 21.7 | 8.5 | 1.4 | 50.0 |
| SC70-10 | 3/8" | 70 | 2/0 | 14.7 | 11.9 | 19.0 | 5.0 | 21.7 | 10.5 | 1.4 | 50.0 |
| SC70-12 | 1/2" | 70 | 2/0 | 14.7 | 11.9 | 19.0 | 5.0 | 21.7 | 13.0 | 1.4 | 50.0 |
| SC70-14 | 35/64" | 70 | 2/0 | 14.7 | 11.9 | 19.0 | 5.0 | 21.7 | 15.0 | 1.4 | 50.0 |
| SC95-8 | 5/16" | 95 | 3/0 | 17.0 | 13.4 | 22.0 | 6.5 | 25.0 | 8.5 | 1.8 | 55.0 |
| SC95-10 | 3/8" | 95 | 3/0 | 17.0 | 13.4 | 22.0 | 6.5 | 25.0 | 10.5 | 1.8 | 55.0 |
| SC95-12 | 1/2" | 95 | 3/0 | 17.0 | 13.4 | 22.0 | 6.5 | 25.0 | 13.0 | 1.8 | 55.0 |
| SC120-8 | 5/16" | 120 | 4/0 | 19.0 | 15.0 | 25.0 | 7.5 | 27.5 | 8.5 | 2.0 | 62.0 |
| SC120-10 | 3/8" | 120 | 4/0 | 19.0 | 15.0 | 25.0 | 7.5 | 27.5 | 10.5 | 2.0 | 62.0 |
| SC120-12 | 1/2" | 120 | 4/0 | 19.0 | 15.0 | 25.0 | 7.5 | 27.5 | 13.0 | 2.0 | 62.0 |
| SC150-10 | 3/8" | 150 | 250 MCM | 21.0 | 17.0 | 27.0 | 10.0 | 30.0 | 8.5 | 2.0 | 69.0 |
| SC150-12 | 1/2" | 150 | 250 MCM | 21.0 | 17.0 | 27.0 | 10.0 | 30.0 | 10.5 | 2.0 | 69.0 |
| SC150-14 | 35/64" | 150 | 250 MCM | 21.0 | 17.0 | 27.0 | 10.0 | 30.0 | 13.0 | 2.0 | 69.0 |
| SC150-16 | 5/8" | 150 | 250 MCM | 21.0 | 17.0 | 27.0 | 10.0 | 30.0 | 15.0 | 2.0 | 69.0 |
| SC185-10 | 3/8" | 185 | 350 MCM | 24.0 | 19.0 | 32.0 | 12.0 | 34.3 | 10.5 | 2.5 | 78.0 |
| SC185-12 | 1/2" | 185 | 350 MCM | 24.0 | 19.0 | 32.0 | 12.0 | 34.3 | 13.0 | 2.5 | 78.0 |
| SC185-14 | 35/64" | 185 | 350 MCM | 24.0 | 19.0 | 32.0 | 12.0 | 34.3 | 15.0 | 2.5 | 78.0 |
| SC185-16 | 5/8" | 185 | 350 MCM | 24.0 | 19.0 | 32.0 | 12.0 | 34.3 | 17.0 | 2.5 | 78.0 |
| SC240-10 | 3/8" | 240 | 450 MCM | 26.0 | 21.0 | 39.0 | 12.0 | 38.0 | 10.5 | 2.5 | 92.0 |
| SC240-12 | 1/2" | 240 | 450 MCM | 26.0 | 21.0 | 39.0 | 12.0 | 38.0 | 13.0 | 2.5 | 92.0 |
| SC240-14 | 35/64" | 240 | 450 MCM | 26.0 | 21.0 | 39.0 | 12.0 | 38.0 | 15.0 | 2.5 | 92.0 |
| SC240-16 | 5/8" | 240 | 450 MCM | 26.0 | 21.0 | 39.0 | 12.0 | 38.0 | 18.5 | 2.5 | 92.0 |
| SC240-20 | 25/32" | 240 | 450 MCM | 26.0 | 21.0 | 39.0 | 12.0 | 38.0 | 21.0 | 2.5 | 92.0 |
| SC300-12 | 1/2" | 300 | 500 MCM | 30.0 | 24.0 | 43.0 | 15.0 | 43.0 | 13.0 | 3.0 | 101.0 |
| SC300-14 | 35/64" | 300 | 500 MCM | 30.0 | 24.0 | 43.0 | 15.0 | 43.0 | 15.0 | 3.0 | 101.0 |
| SC300-16 | 5/8" | 300 | 500 MCM | 30.0 | 24.0 | 43.0 | 15.0 | 43.0 | 17.0 | 3.0 | 101.0 |
| SC300-20 | 25/32" | 300 | 500 MCM | 30.0 | 24.0 | 43.0 | 15.0 | 43.0 | 21.0 | 3.0 | 101.0 |
